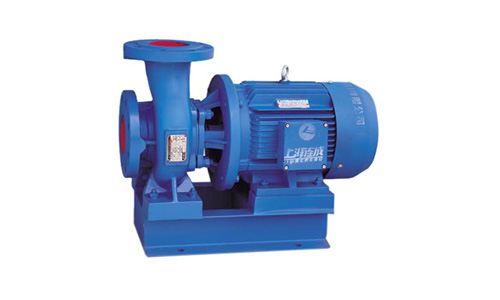

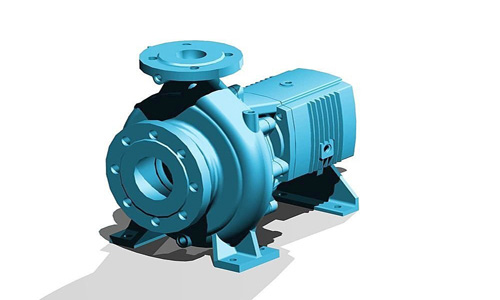

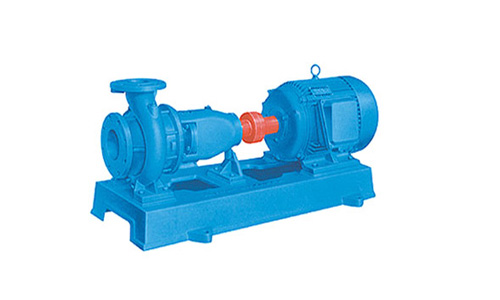

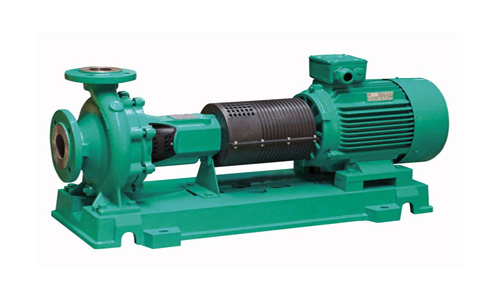

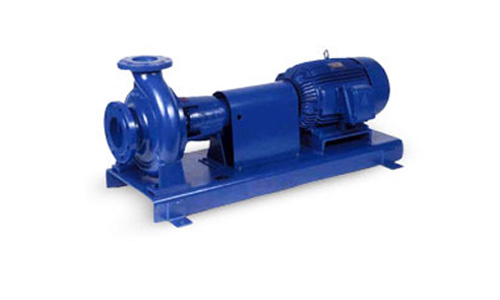

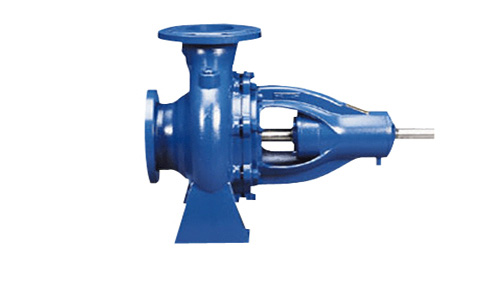

is series single stage end-suction horizontal centrifugal pump is the energy-saving pump. Advantages: reasonable hydraulic structure and convenient maintenance and good suction height and high effeciency etc. the pump is suitable for water sewage and wastewater supply and discharge in industry and city treatment plants and gardening in farm.
It is used to transport clear water, wastwater and other liquids which is contain physical and chemical characteristic. Liquids temprature is not higher than 80°c. Applications water dynamics' zw series pumps are used when the following are required:
- Waste water handling and treatment. - Civil engineering. - Fire fighting. - Heating & cooling systems. - Sewage pumping. - Marine engineering. - Bilge pumping. - Sanitary circulation. - Liquid handling and transfer in many industrial areas. - Sludge handling and transfer. - Filtration system feed pumping.
Water dynamics' pumps is series single stage end-suction horizonatal centrifugal pump are available in defferent - Materials : cast iron, cast bronze, cast stainless steel - Power : range from 2.2 Kw to 55 Kw - Voltage : high flow rate & high head design - Electrical motors : of siemens brand totally enclosed fan cooled (TEFC).
Motors Speed : 2800 rpm and 1450 rpm Intel flange : 50-200 mm Flow rate : 6.3-400 m3/h Discharge Head : 5-125 m Water dynamics' pumps ZW series self-priming sewage pumps are with self priming and sewage discharge.
It means the pumps can suck and discharge the large grain and long fiber and sediment and impurity in the waste water. And the performance is very steady. It is very convient to operate and move and install and maintain.
1- Environment temperature ≤ 45°c, Liquids temprature ≤ 120°c. 2- Liquid PH : cast iron pump : 6~9, Stainless steel : 1~14. 3- Max grain diameter can be 60% of caliber for pump. Lengh of fiber can be 5 times as caliber for pump. 4- Impurity weight into liquid can not more than 15% of liquid weight. Liquid density ≤ 1240 Kg/cm3.
